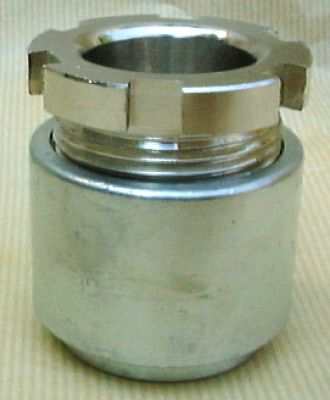

| ＜型＞A型 |
 |
|
| 型番 | 呼び寸法 | パッキン | ねじ部（管用ねじ） | 税別@ |
|---|
| 記号 | 内径 | 呼び | ねじ径 |
|---|
| PCGB-A10A | 10 | a | 7 | PF3/8 | 16.662 | 765 |
| PCGB-A10B | 10 | b | 8 | PF3/8 | 16.662 | 765 |
| PCGB-A15A | 15 | a | 9 | PF1/2(CTG16近似) | 20.955 | 880 |
| PCGB-A15B | 15 | b | 10 | PF1/2(CTG16近似) | 20.955 | 880 |
| PCGB-A15C | 15 | c | 11 | PF1/2(CTG16近似) | 20.955 | 880 |
| PCGB-A20A | 20 | a | 12 | PF3/4(CTG22近似) | 26.441 | 1,050 |
| PCGB-A20B | 20 | b | 13 | PF3/4(CTG22近似) | 26.441 | 1,050 |
| PCGB-A20C | 20 | c | 15 | PF3/4(CTG22近似) | 26.441 | 1,050 |
| PCGB-A25A | 25 | a | 16 | PF1(CTG28近似) | 33.249 | 1,750 |
| PCGB-A25B | 25 | b | 18 | PF1(CTG28近似) | 33.249 | 1,750 |
| PCGB-A25C | 25 | c | 20 | PF1(CTG28近似) | 33.249 | 1,750 |
| PCGB-A30A | 30 | a | 22 | PF1.1/4(CTG36近似) | 41.910 | 2,700 |
| PCGB-A30B | 30 | b | 24 | PF1.1/4(CTG36近似) | 41.910 | 2,700 |
| PCGB-A30C | 30 | c | 26 | PF1.1/4(CTG36近似) | 41.910 | 2,700 |
| PCGB-A35A | 35 | a | 28 | PF1.1/2(CTG42近似) | 47.803 | 3,110 |
| PCGB-A35B | 35 | b | 30 | PF1.1/2(CTG42近似) | 47.803 | 3,110 |
| PCGB-A40A | 40 | a | 32 | PF1.1/2(CTG42近似) | 47.803 | 3,210 |
| PCGB-A40B | 40 | b | 34 | PF1.1/2(CTG42近似) | 47.803 | 3,210 |
| 型番 | 呼び寸法 | パッキン | ねじ部（管用ねじ） | 税別@ |
|---|
| 記号 | 内径 | 呼び | ねじ径 |
|---|
| PCGB-A45A | 45 | a | 36 | PF2(CTG54近似) | 59.614 | 6,090 |
| PCGB-A45B | 45 | b | 38 | PF2(CTG54近似) | 59.614 | 6,090 |
| PCGB-A45C | 45 | c | 40 | PF2(CTG54近似) | 59.614 | 6,090 |
| PCGB-A50A | 50 | a | 42 | PF2(CTG54近似) | 59.614 | 5,850 |
| PCGB-A50B | 50 | b | 44 | PF2(CTG54近似) | 59.614 | 5,850 |
| PCGB-A55A | 55 | a | 46 | PF2.1/2(CTG70近似) | 75.184 | 9,320 |
| PCGB-A55B | 55 | b | 48 | PF2.1/2(CTG70近似) | 75.184 | 9,320 |
| PCGB-A55C | 55 | c | 50 | PF2.1/2(CTG70近似) | 75.184 | 9,320 |
| PCGB-A60A | 60 | a | 52 | PF2.1/2(CTG70近似) | 75.184 | 10,010 |
| PCGB-A60B | 60 | b | 54 | PF2.1/2(CTG70近似) | 75.184 | 10,010 |
| PCGB-A60C | 60 | c | 56 | PF2.1/2(CTG70近似) | 75.184 | 10,010 |
- A型（箱用）
- ご注文の際は「型番」でご指定下さい。(例「PCGB-A20A」)
|
